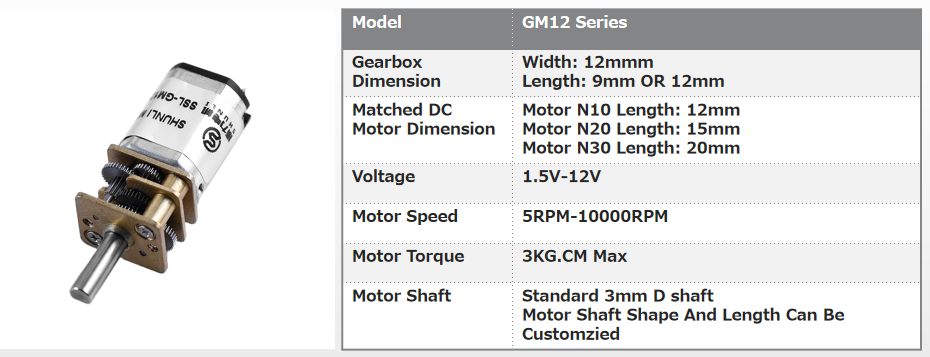

Product Details
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1 : 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K |
110K/150K/210K/ 250K/298K/380K |
372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
We are a factory specializing in producing motors for more than 14 years. With three specialized factories, our professional R&D team, mature management, and experienced engineering and sales teams ensure a highly reliable and satisfying partnership.
To guarantee absolute reliability, every process step is thoroughly monitored, from raw material receipt to final shipment. Quality is the core foundation of our sustainable development.
Give us a chance to cooperate with you!
We are a professional manufacturer. We specialize in micro DC motors and DC gear motors with over 14 years of design and manufacturing experience.
We support online trade assurance orders allowing online payment via credit cards, PayPal, bank transfers, or T/T.
Yes, we provide extensive custom engineering. We can modify electrical specifications, shaft dimensions, and gear ratios according to customer requirements.
Yes, our motors hold certifications including CE, FCC, ISO, and RoHS. We can also assist in applying for other certifications if required.
We have dedicated quality control checkers at every step of production. Finished motors undergo comprehensive performance tests including hardness, 2.5D imaging, salt spray resistance, lifespan, temperature range, and noise output.
Standard samples are delivered within 2 weeks, while customized specifications take about 3 weeks. Mass production lead times will be determined based on order volumes.
