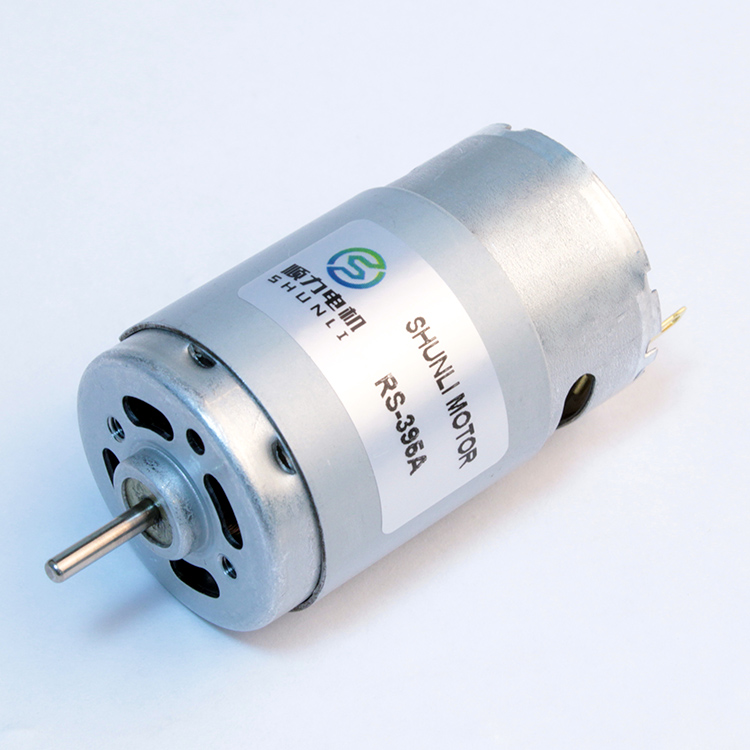

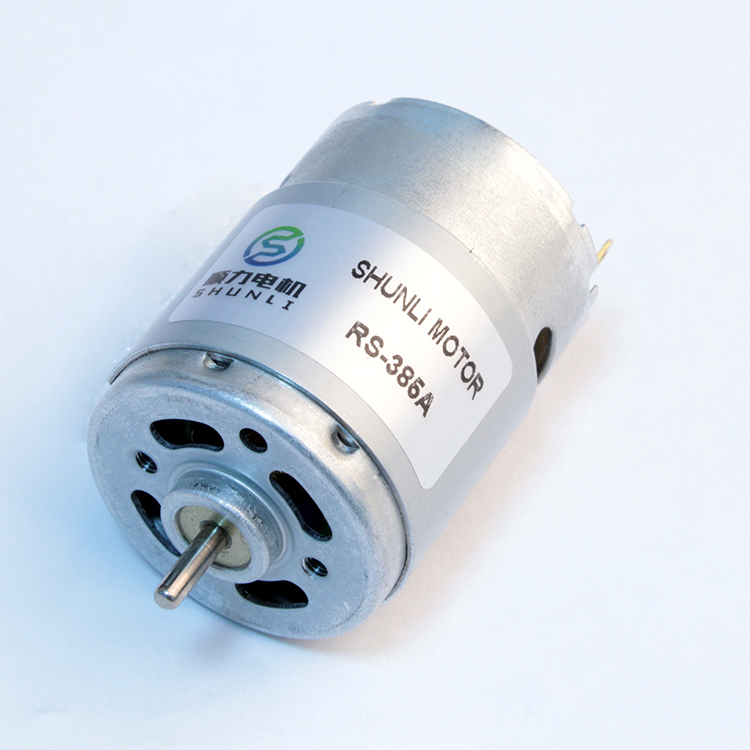

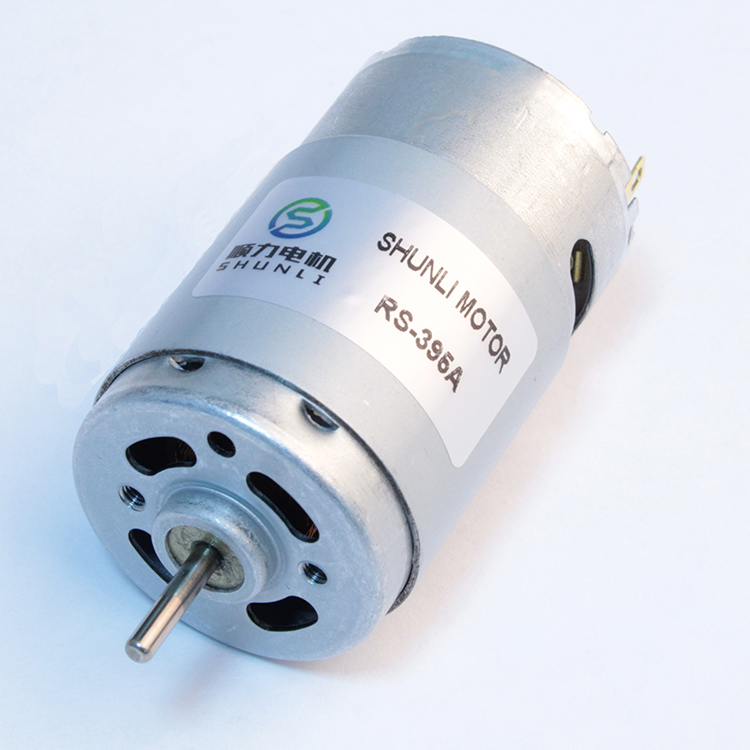

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

390 DC Motor for Machine Fan 12V 6000RPM Motor

Product Details

Motor Customized Specification Available. Please contact us for technical custom requirements.

Reference Drawing

------ RS - 365

------ RS - 385

------ RS - 395

The length of the shaft can be customized upon request.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07 / 61.9	2.72	2.22	42.2 / 430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75 / 58.6	1.31	8.9	80.4 / 820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83 / 59.5	1.8	1.06	30.4 / 310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09 / 72.3	6.68	2.66	54.9 / 560

Frequently Asked Questions (FAQ)

Can the motor specifications and shaft dimensions be customized?

Yes, both the overall motor specifications and the shaft length can be customized to fit your specific application demands.

What is the operating voltage range for the RS-390SH DC motor?

The RS-390SH models (both 20156R and 2975 variants) have an operating voltage range of 6.0V to 12.0V DC with a nominal rating of 12VDC.

What are the key technical differences between RS-390SH and RS-395SH models?

The RS-390SH operates at 6.0V-12.0V with no-load speeds up to 12,000 RPM (for the 2975 model). The RS-395SH series supports up to 24.0V operating range (15100R model) with a stall torque reaching up to 54.9 mN.m / 560 gf.cm.

What are the no-load specifications for the RS-395SH 15100R variant?

The RS-395SH 15100R variant has a nominal voltage of 24VDC, a no-load speed of 10,300 RPM, and a no-load current of 0.07A.

Which drawing references are available in this PMDC motor series?

This series includes detailed reference drawings and specifications for the RS-365, RS-385, and RS-395 variants.

What is the typical application for these 12V DC motors?

These permanent magnet DC (PMDC) motors are optimized for machine fans, cooling fans, and other electronic equipment requiring high-efficiency rotational power.
