6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

📋 Product Description

6v 12v 24v micro motor electric car motor micro dc motor

⚡ Product Details

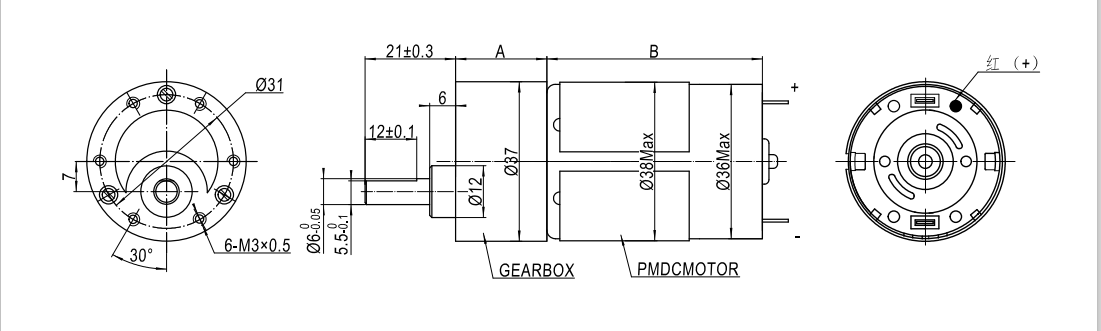

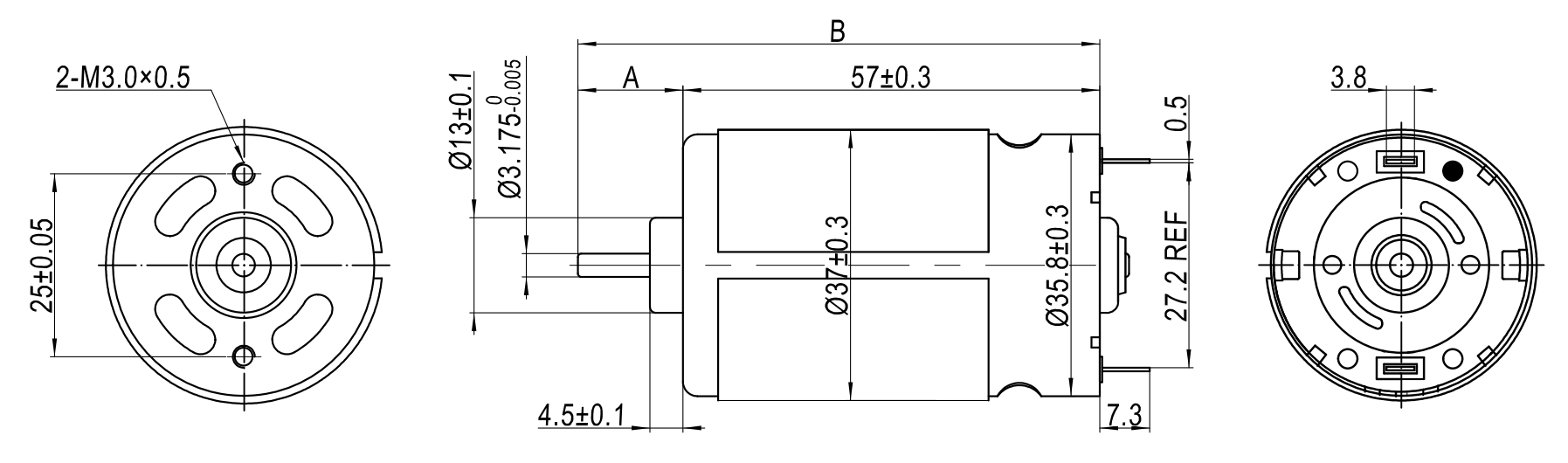

📐 Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

💡 The length of shaft can be customized.

📊 Reference Datasheet

PMDC MOTOR Technical Date
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

💡 Recommend Product

❓ Frequently Asked Questions (FAQ)

What voltage options are available for these micro DC motors?

Our micro DC motors support standard voltage ratings of 6V, 12V, and 24V to fit various electric applications and operational requirements.

Can the motor shaft length be customized?

Yes, the length of the shaft can be customized according to your specific structural and installation design needs.

What are the main applications of the RS-545, RS-555, and RS-575 series?

These PMDC motors are commonly used in electric car mechanisms, micro-drives, automated appliances, and precision electronics.

Where can I find detailed speed and torque parameters?

Detailed performance data, including no-load parameters, rated speed, rated torque, power, and stall capabilities, can be found in our technical datasheet section above.

How is the performance of the RS-550H model at different voltages?

The RS-550H model operates across a range of 6.0V to 24.0V, reaching a nominal speed of 4500 RPM at 24VDC and up to 16000 RPM under 12VDC depending on the specific winding layout.
