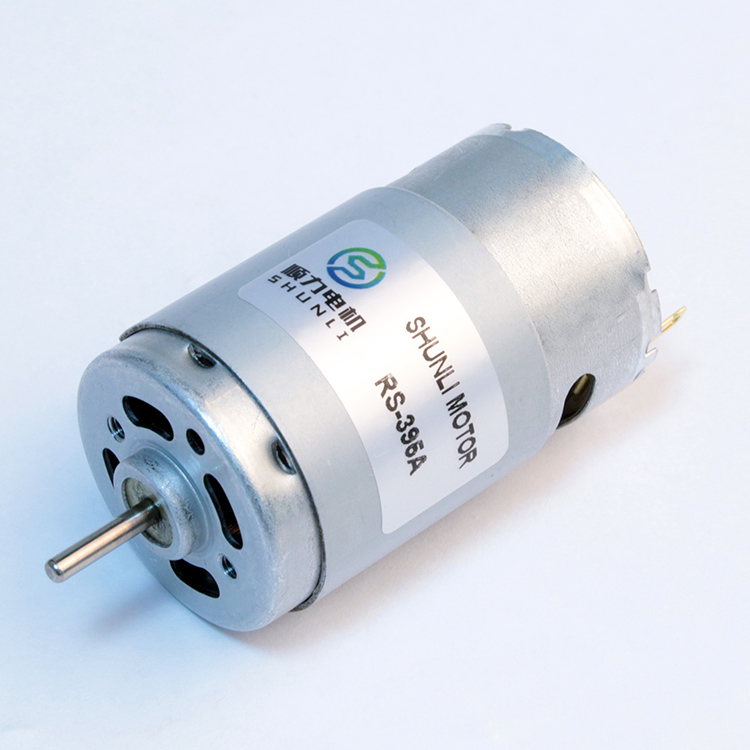

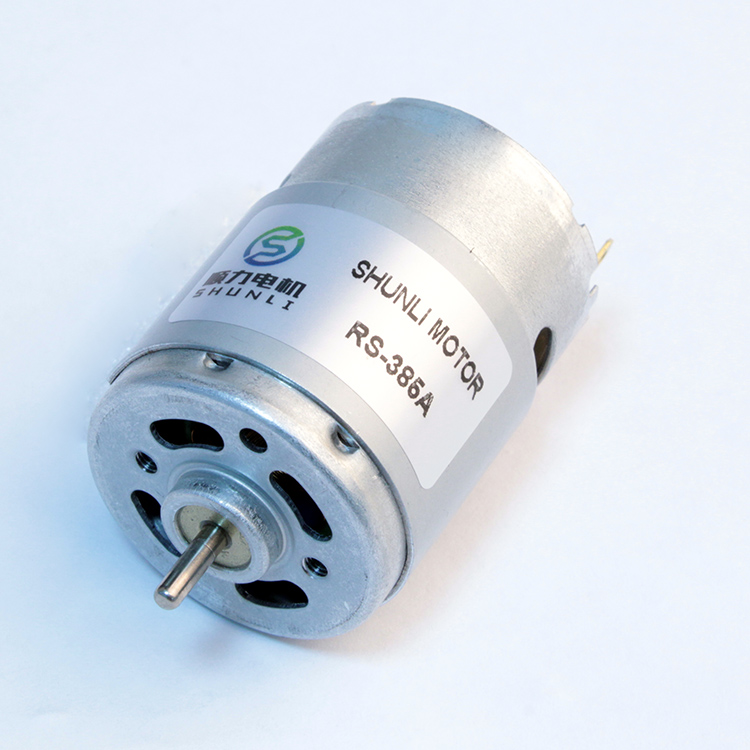

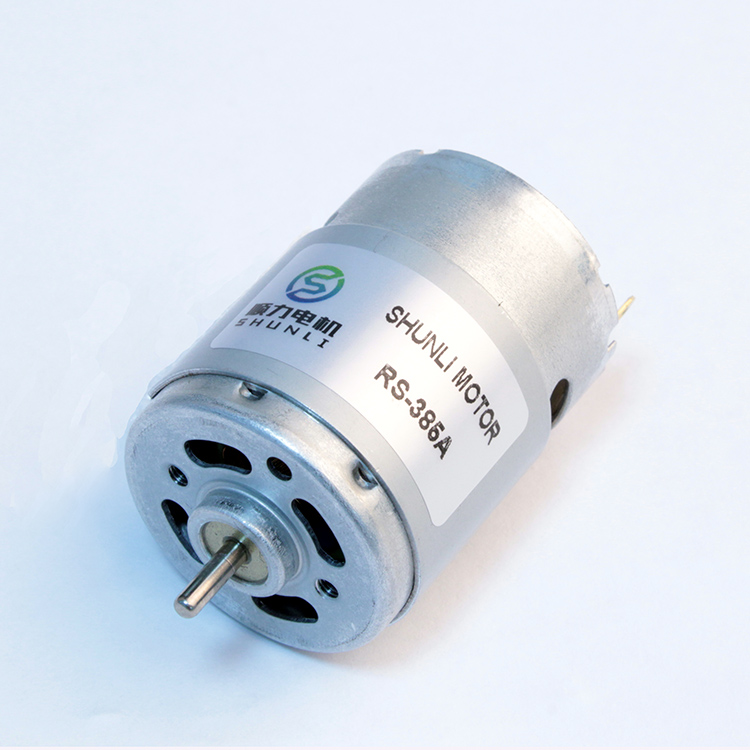

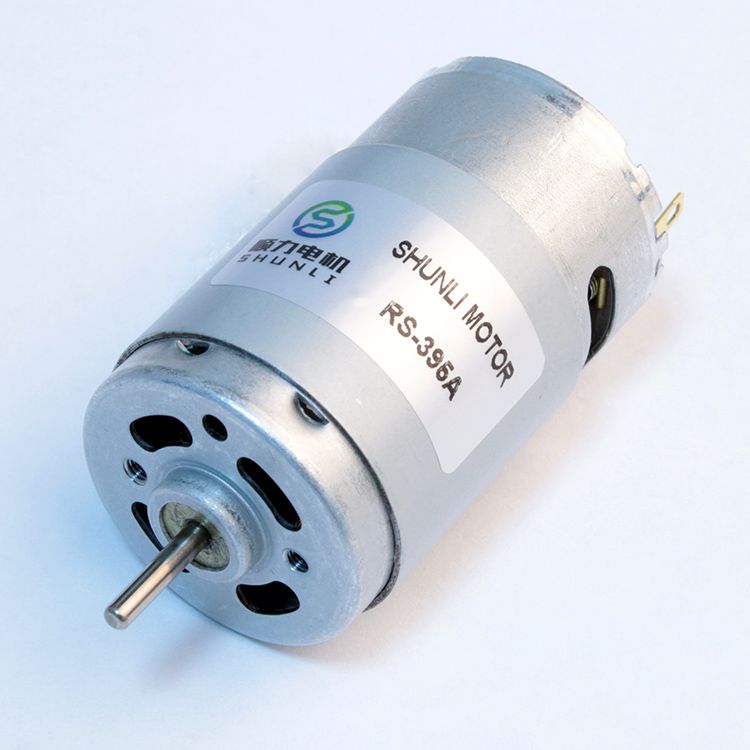

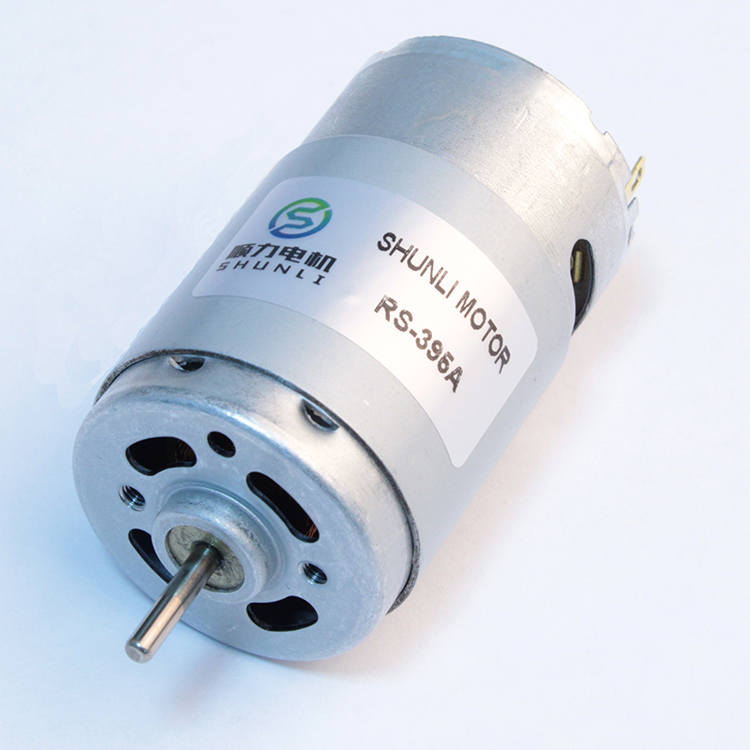

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

1 / 5

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Send Inquiry

Product Description

Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Product Description

Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor

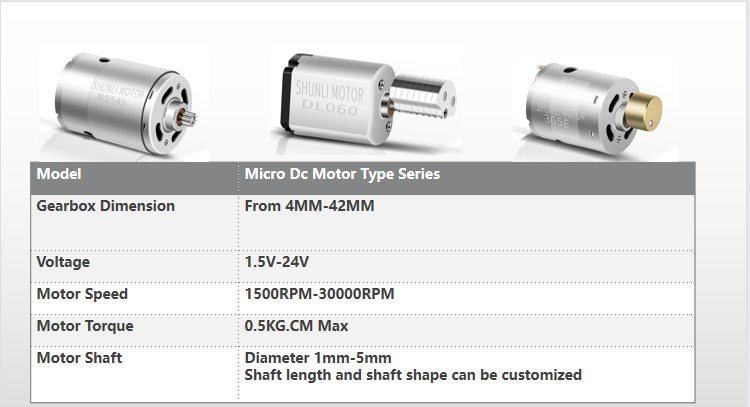

Product Details Motor Details

⚙️ Motor Customized Specification, Please contact us.

Reference Drawing

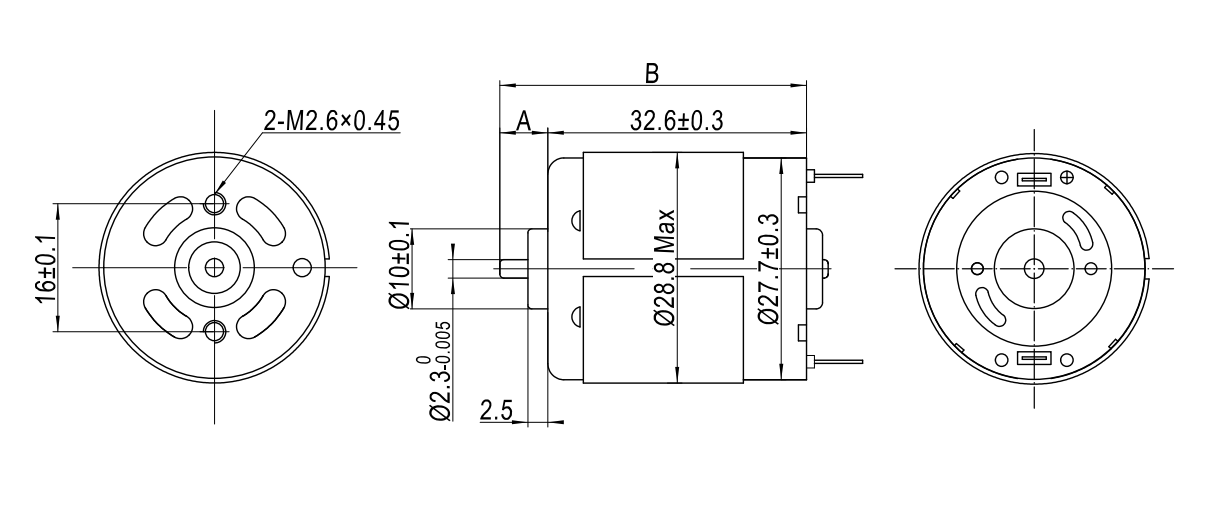

------ RS - 365

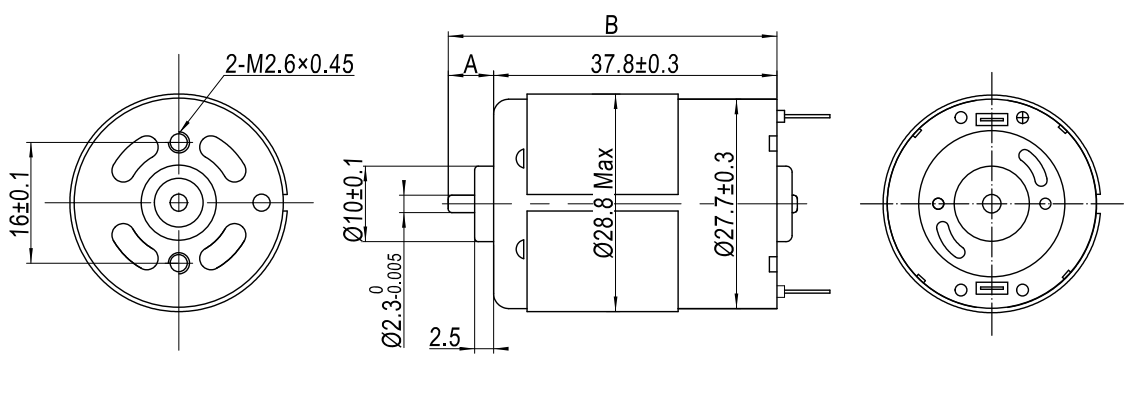

------ RS - 385

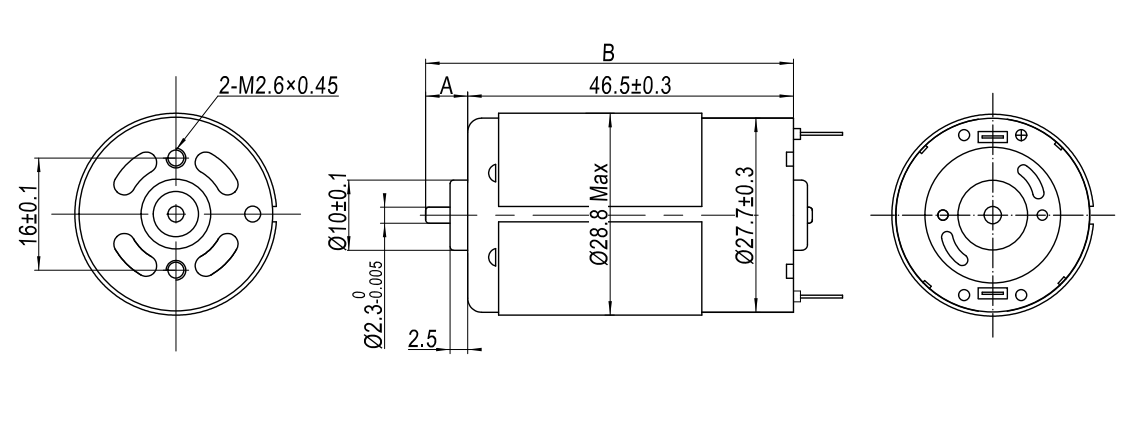

------ RS - 395

📏 The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

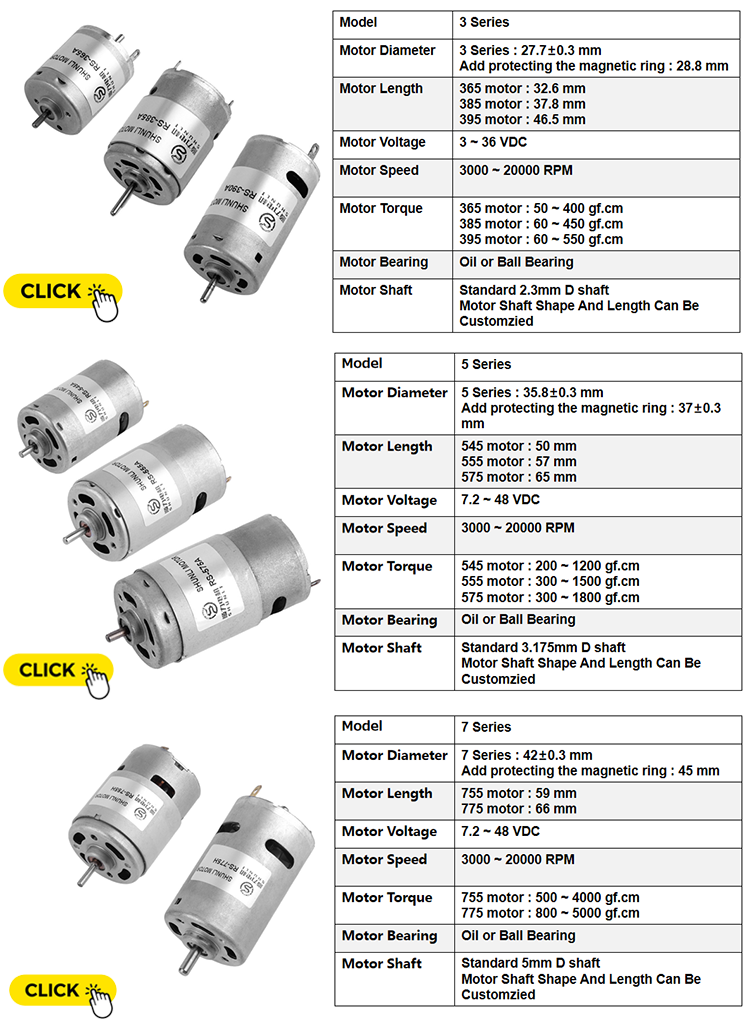

Recommend Product

Frequently Asked Questions (FAQ)

What applications are these 12V DC motors suitable for?

These motors are professionally designed for high-performance applications, including hair dryers, micro vacuum cleaners, and various household or personal care electrical appliances.

Can the shaft length of the motor be customized?

Yes, the length of the shaft can be fully customized according to your specific product designs and technical requirements.

Are there brushless and brush motor options available?

Yes, we support both custom brush and brushless motor configurations to match your efficiency and durability demands.

What is the operating voltage range for these PMDC motors?

Depending on the model, the operating voltage range varies. For example, the RS-390SH models operate within 6.0V to 12.0V, while the RS-395SH 15100R model can operate up to 24.0V DC.

How can I obtain customized specifications for my motor needs?

You can specify your required motor parameters, and custom configurations can be developed to match your technical blueprints. Please contact our support team for engineering assistance.
