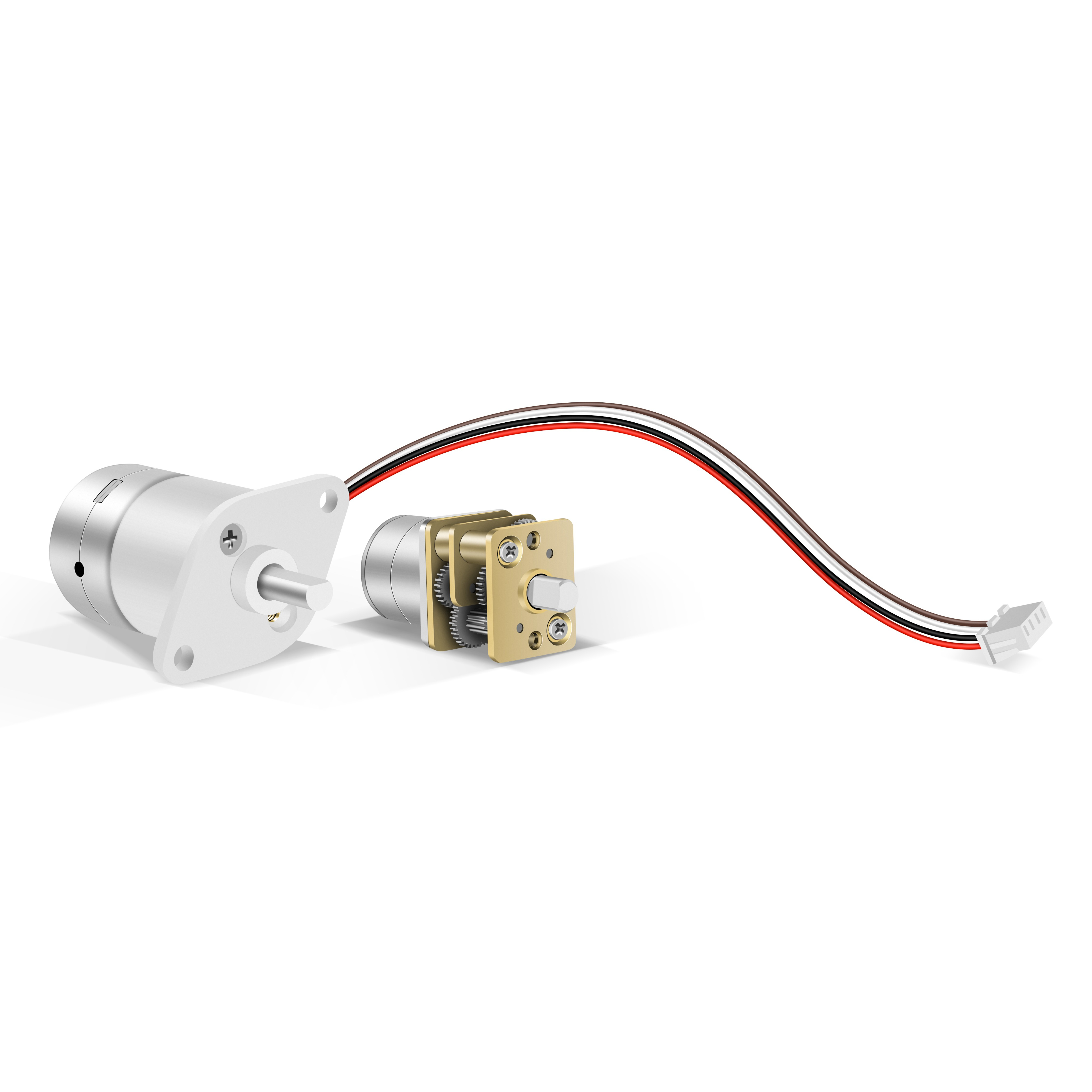

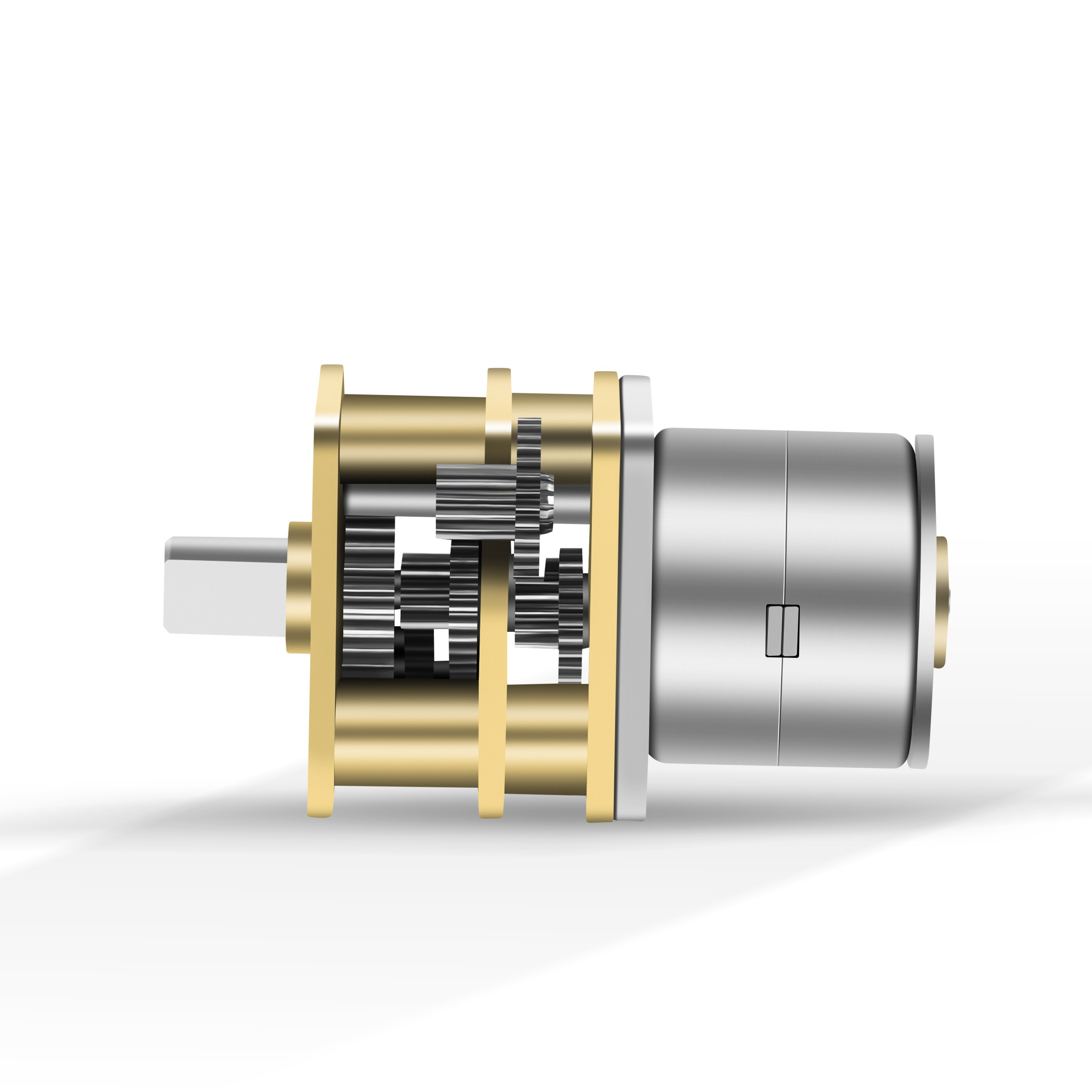

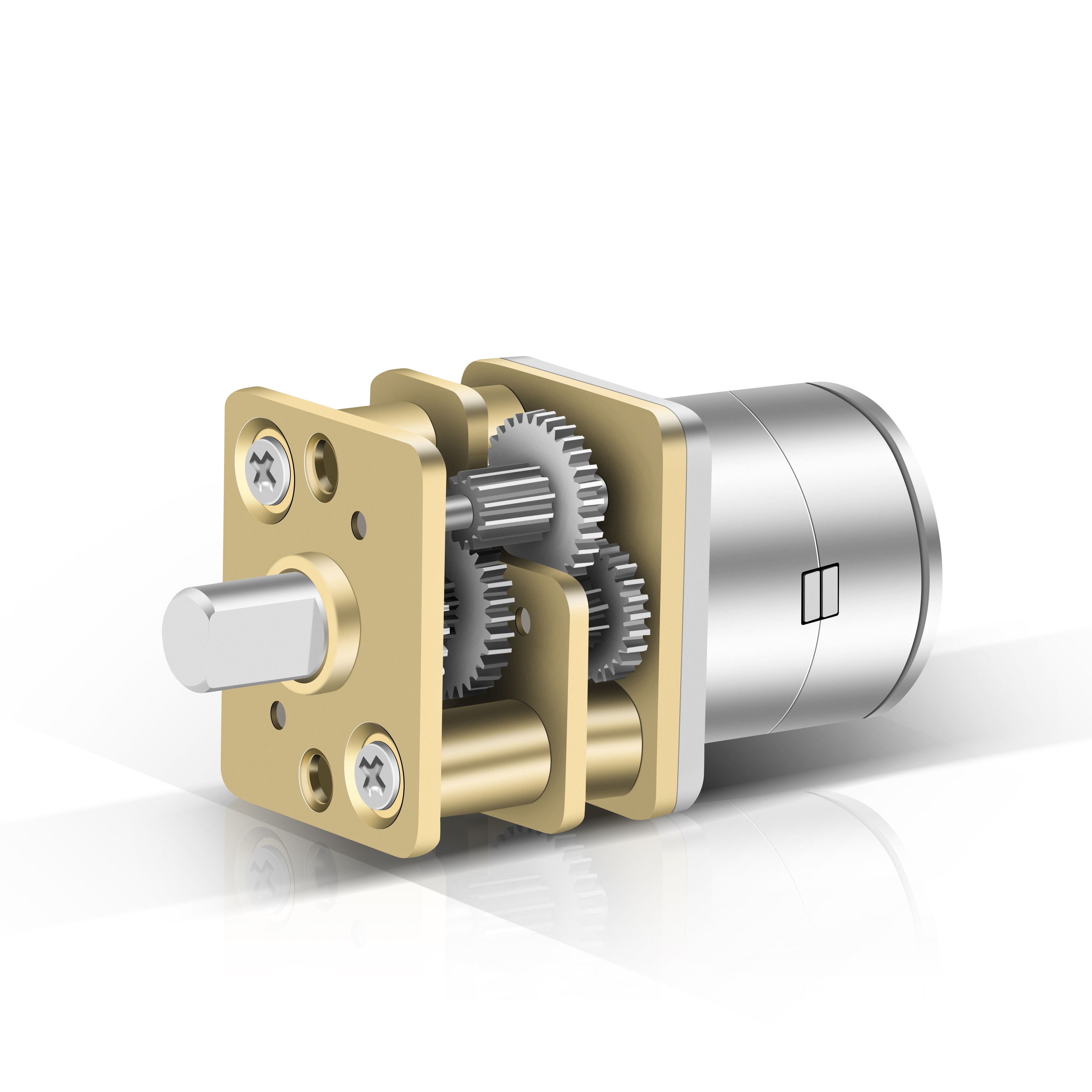

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
1 / 5
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Send Inquiry

Product Description

Product Overview
Product Description

Customized 12mm micro dc gear motor, non-captive stepper motor, miniature 5v stepper motor of medical equipment.

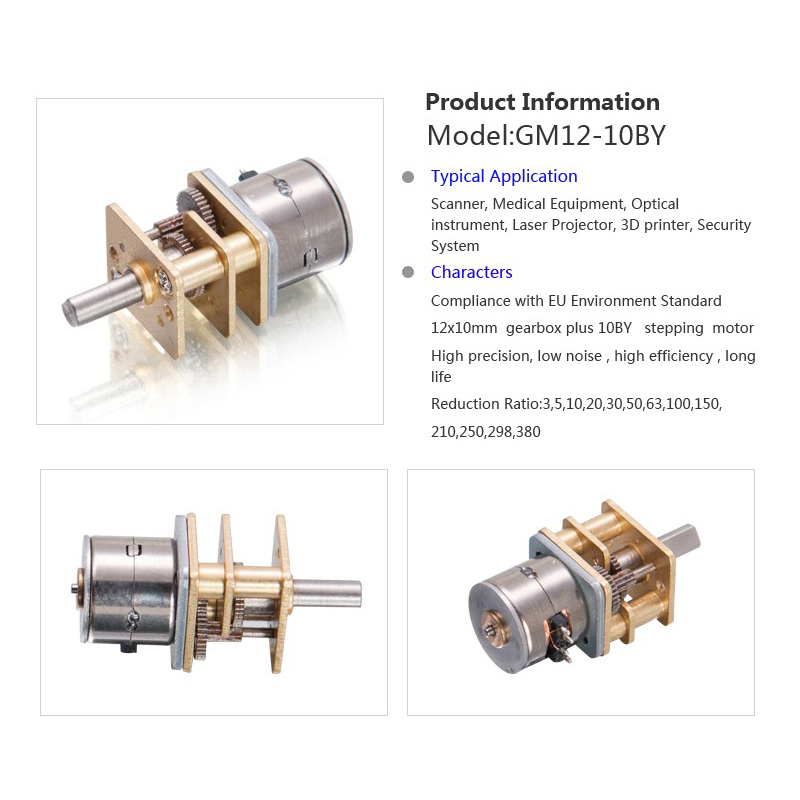

12mm Micro DC Gear Motor
Motor Customized Specification

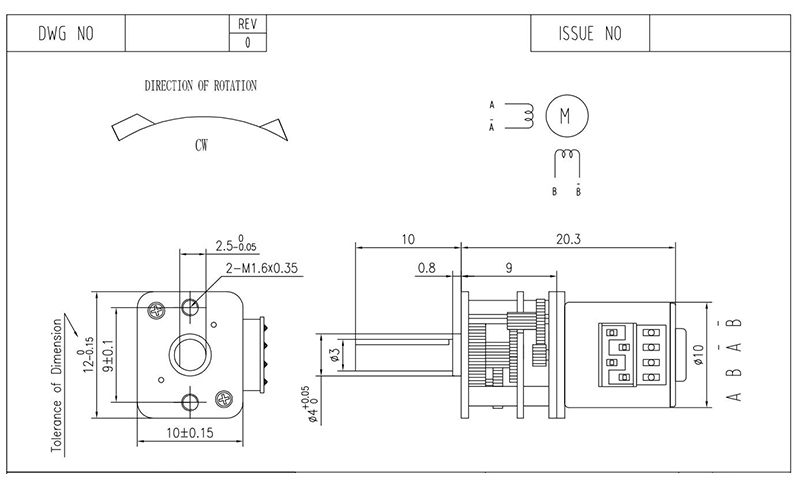

Reference Drawing — GM12-10BY

GM12-10BY Reference Drawing
Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L" (mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%

Customized 12mm micro dc gear motor, non-captive stepper motor, miniature 5v stepper motor of medical equipment.

Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (N.m / Kgf.cm) Current (mA) Torque (N.m / Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.095 / 0.95 ≤ 1700 0.42 / 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 0.32 / 3.2 ≤ 3900 1.25 / 12.5
Recommended Motor Models
Recommended Gear Motors 1
Recommended Gear Motors 2
Certifications
Certificates
Customer Evaluation
Customer Evaluation Details
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We support secure online payment systems including major Credit Cards (Visa, MasterCard), PayPal, and wire transfers (T/T).
Q3: I cannot find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor based on our customer's specific technical parameters and requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, and other international standard certifications. We can also apply for specific certificates if required.
Q5: How is your Quality Control?
A: We have professional quality control staff stationed at each stage of the production line. All finished products undergo strict checks using specialized equipment, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
Q6: What is the typical lead time for samples and production?
A: Standard samples usually take 7-10 working days, and bulk mass production orders average 20-25 days depending on the project complexity and order quantity.
